Dialog for create brighter and/or darker versions of an image. More...

#include <CreateBrightImgDlg.h>

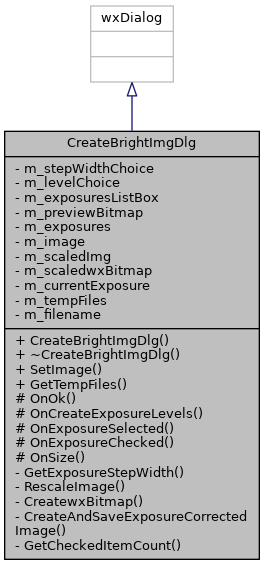

Inheritance diagram for CreateBrightImgDlg:

Inheritance graph

Public Member Functions
	CreateBrightImgDlg (wxWindow *parent)
	Constructor, read from xrc ressource; restore position.

	~CreateBrightImgDlg ()
	destructor, save position

bool	SetImage (const wxString &filename, wxString &errorMsg)
	load the image, return true on success, otherwise false, error cause is in errorMsg

wxArrayString	GetTempFiles () const

Protected Member Functions
void	OnOk (wxCommandEvent &e)
	process all images

void	OnCreateExposureLevels (wxCommandEvent &e)
	update listbox with new exposure values

void	OnExposureSelected (wxListEvent &e)
	one exposure selected

void	OnExposureChecked (wxListEvent &e)
	prevent checking of exposure value 0

void	OnSize (wxSizeEvent &e)
	handler called when size of control was changed

Private Member Functions
double	GetExposureStepWidth () const
	returns the current selected exposure step width

void	RescaleImage ()
	create rescaled image

void	CreatewxBitmap (const vigra::BRGBImage &img)
	create the wxBitmap version and apply color profiles

bool	CreateAndSaveExposureCorrectedImage (const wxString &filename, const double correction)
	create the exposure corrected image and save it to the file

long	GetCheckedItemCount ()
	return the number of checked exposures

Private Attributes
wxChoice *	m_stepWidthChoice { nullptr }

wxChoice *	m_levelChoice { nullptr }

wxListCtrl *	m_exposuresListBox { nullptr }

wxStaticBitmap *	m_previewBitmap { nullptr }

std::vector< double >	m_exposures

ImageCache::EntryPtr	m_image
	image cache entry for current image

vigra::BRGBImage	m_scaledImg
	current image as vigra::RGBImage

wxBitmap	m_scaledwxBitmap
	current image as wxBitmap

double	m_currentExposure { 0 }

wxArrayString	m_tempFiles

wxString	m_filename

Detailed Description

Dialog for create brighter and/or darker versions of an image.

Definition at line 36 of file CreateBrightImgDlg.h.

Constructor & Destructor Documentation

◆ CreateBrightImgDlg()

CreateBrightImgDlg::CreateBrightImgDlg ( wxWindow * parent )

Constructor, read from xrc ressource; restore position.

Definition at line 55 of file CreateBrightImgDlg.cpp.

References m_exposuresListBox, m_levelChoice, m_previewBitmap, m_stepWidthChoice, OnCreateExposureLevels(), OnExposureChecked(), OnExposureSelected(), OnOk(), OnSize(), hugin_utils::RestoreFramePosition(), and threshold().

◆ ~CreateBrightImgDlg()

CreateBrightImgDlg::~CreateBrightImgDlg ( )

destructor, save position

Definition at line 80 of file CreateBrightImgDlg.cpp.

References hugin_utils::StoreFramePosition().

Member Function Documentation

◆ CreateAndSaveExposureCorrectedImage()

bool CreateBrightImgDlg::CreateAndSaveExposureCorrectedImage	(	const wxString &	filename,
		const double	correction
	)

private

create the exposure corrected image and save it to the file

Definition at line 281 of file CreateBrightImgDlg.cpp.

References CreateBrightVersion(), vigra::exportImageAlpha(), HuginQueue::GetExternalProgram(), HUGIN_CONV_FILENAME, m_filename, m_image, threshold(), and HuginQueue::wxEscapeFilename().

Referenced by OnOk().

◆ CreatewxBitmap()

void CreateBrightImgDlg::CreatewxBitmap ( const vigra::BRGBImage & img )

private

create the wxBitmap version and apply color profiles

Definition at line 253 of file CreateBrightImgDlg.cpp.

References HuginBase::Color::CorrectImage(), m_image, m_previewBitmap, m_scaledwxBitmap, and threshold().

Referenced by OnExposureSelected(), and RescaleImage().

◆ GetCheckedItemCount()

long CreateBrightImgDlg::GetCheckedItemCount ( )

private

return the number of checked exposures

Definition at line 345 of file CreateBrightImgDlg.cpp.

References m_exposuresListBox, and threshold().

Referenced by OnOk().

◆ GetExposureStepWidth()

double CreateBrightImgDlg::GetExposureStepWidth ( ) const

private

returns the current selected exposure step width

Definition at line 216 of file CreateBrightImgDlg.cpp.

References m_stepWidthChoice.

Referenced by OnCreateExposureLevels().

◆ GetTempFiles()

wxArrayString CreateBrightImgDlg::GetTempFiles ( ) const

Definition at line 118 of file CreateBrightImgDlg.cpp.

References m_tempFiles.

◆ OnCreateExposureLevels()

void CreateBrightImgDlg::OnCreateExposureLevels ( wxCommandEvent & e )

protected

update listbox with new exposure values

Definition at line 160 of file CreateBrightImgDlg.cpp.

References GetExposureStepWidth(), m_exposures, m_exposuresListBox, m_levelChoice, OnExposureChecked(), and threshold().

Referenced by CreateBrightImgDlg().

◆ OnExposureChecked()

void CreateBrightImgDlg::OnExposureChecked ( wxListEvent & e )

protected

prevent checking of exposure value 0

Definition at line 199 of file CreateBrightImgDlg.cpp.

References m_exposuresListBox.

Referenced by CreateBrightImgDlg(), and OnCreateExposureLevels().

◆ OnExposureSelected()

void CreateBrightImgDlg::OnExposureSelected ( wxListEvent & e )

protected

one exposure selected

Definition at line 180 of file CreateBrightImgDlg.cpp.

References CreateBrightVersion(), CreatewxBitmap(), m_currentExposure, m_exposures, m_exposuresListBox, m_previewBitmap, m_scaledImg, m_scaledwxBitmap, and threshold().

Referenced by CreateBrightImgDlg().

◆ OnOk()

void CreateBrightImgDlg::OnOk ( wxCommandEvent & e )

protected

process all images

Definition at line 123 of file CreateBrightImgDlg.cpp.

References CreateAndSaveExposureCorrectedImage(), GetCheckedItemCount(), HuginQueue::GetConfigTempDir(), hugin_utils::HuginMessageBox(), m_exposures, m_exposuresListBox, m_tempFiles, and threshold().

Referenced by CreateBrightImgDlg().

◆ OnSize()

void CreateBrightImgDlg::OnSize ( wxSizeEvent & e )

protected

handler called when size of control was changed

Definition at line 208 of file CreateBrightImgDlg.cpp.

References m_previewBitmap, m_scaledwxBitmap, RescaleImage(), and threshold().

Referenced by CreateBrightImgDlg().

◆ RescaleImage()

void CreateBrightImgDlg::RescaleImage ( )

private

create rescaled image

Definition at line 232 of file CreateBrightImgDlg.cpp.

References CreateBrightVersion(), CreatewxBitmap(), m_currentExposure, m_image, m_previewBitmap, m_scaledImg, and threshold().

Referenced by OnSize(), and SetImage().

◆ SetImage()

bool CreateBrightImgDlg::SetImage	(	const wxString &	filename,
		wxString &	errorMsg
	)

load the image, return true on success, otherwise false, error cause is in errorMsg

Definition at line 86 of file CreateBrightImgDlg.cpp.

References HUGIN_CONV_FILENAME, m_filename, m_image, m_previewBitmap, m_scaledwxBitmap, RescaleImage(), and threshold().

Member Data Documentation

◆ m_currentExposure

double CreateBrightImgDlg::m_currentExposure { 0 }

private

Definition at line 81 of file CreateBrightImgDlg.h.

Referenced by OnExposureSelected(), and RescaleImage().

◆ m_exposures

std::vector<double> CreateBrightImgDlg::m_exposures

private

Definition at line 74 of file CreateBrightImgDlg.h.

Referenced by OnCreateExposureLevels(), OnExposureSelected(), and OnOk().

◆ m_exposuresListBox

wxListCtrl* CreateBrightImgDlg::m_exposuresListBox { nullptr }

private

Definition at line 71 of file CreateBrightImgDlg.h.

Referenced by CreateBrightImgDlg(), GetCheckedItemCount(), OnCreateExposureLevels(), OnExposureChecked(), OnExposureSelected(), and OnOk().

◆ m_filename

wxString CreateBrightImgDlg::m_filename

private

Definition at line 83 of file CreateBrightImgDlg.h.

Referenced by CreateAndSaveExposureCorrectedImage(), and SetImage().

◆ m_image

ImageCache::EntryPtr CreateBrightImgDlg::m_image

private

image cache entry for current image

Definition at line 76 of file CreateBrightImgDlg.h.

Referenced by CreateAndSaveExposureCorrectedImage(), CreatewxBitmap(), RescaleImage(), and SetImage().

◆ m_levelChoice

wxChoice* CreateBrightImgDlg::m_levelChoice { nullptr }

private

Definition at line 70 of file CreateBrightImgDlg.h.

Referenced by CreateBrightImgDlg(), and OnCreateExposureLevels().

◆ m_previewBitmap

wxStaticBitmap* CreateBrightImgDlg::m_previewBitmap { nullptr }

private

Definition at line 72 of file CreateBrightImgDlg.h.

Referenced by CreateBrightImgDlg(), CreatewxBitmap(), OnExposureSelected(), OnSize(), RescaleImage(), and SetImage().

◆ m_scaledImg

vigra::BRGBImage CreateBrightImgDlg::m_scaledImg

private

current image as vigra::RGBImage

Definition at line 78 of file CreateBrightImgDlg.h.

Referenced by OnExposureSelected(), and RescaleImage().

◆ m_scaledwxBitmap

wxBitmap CreateBrightImgDlg::m_scaledwxBitmap

private

current image as wxBitmap

Definition at line 80 of file CreateBrightImgDlg.h.

Referenced by CreatewxBitmap(), OnExposureSelected(), OnSize(), and SetImage().

◆ m_stepWidthChoice

wxChoice* CreateBrightImgDlg::m_stepWidthChoice { nullptr }

private

Definition at line 69 of file CreateBrightImgDlg.h.

Referenced by CreateBrightImgDlg(), and GetExposureStepWidth().

◆ m_tempFiles

wxArrayString CreateBrightImgDlg::m_tempFiles

private

Definition at line 82 of file CreateBrightImgDlg.h.

Referenced by GetTempFiles(), and OnOk().

The documentation for this class was generated from the following files:

hugin1/toolbox/CreateBrightImgDlg.h
hugin1/toolbox/CreateBrightImgDlg.cpp
